Entity Relationship Diagram¶

Overview¶

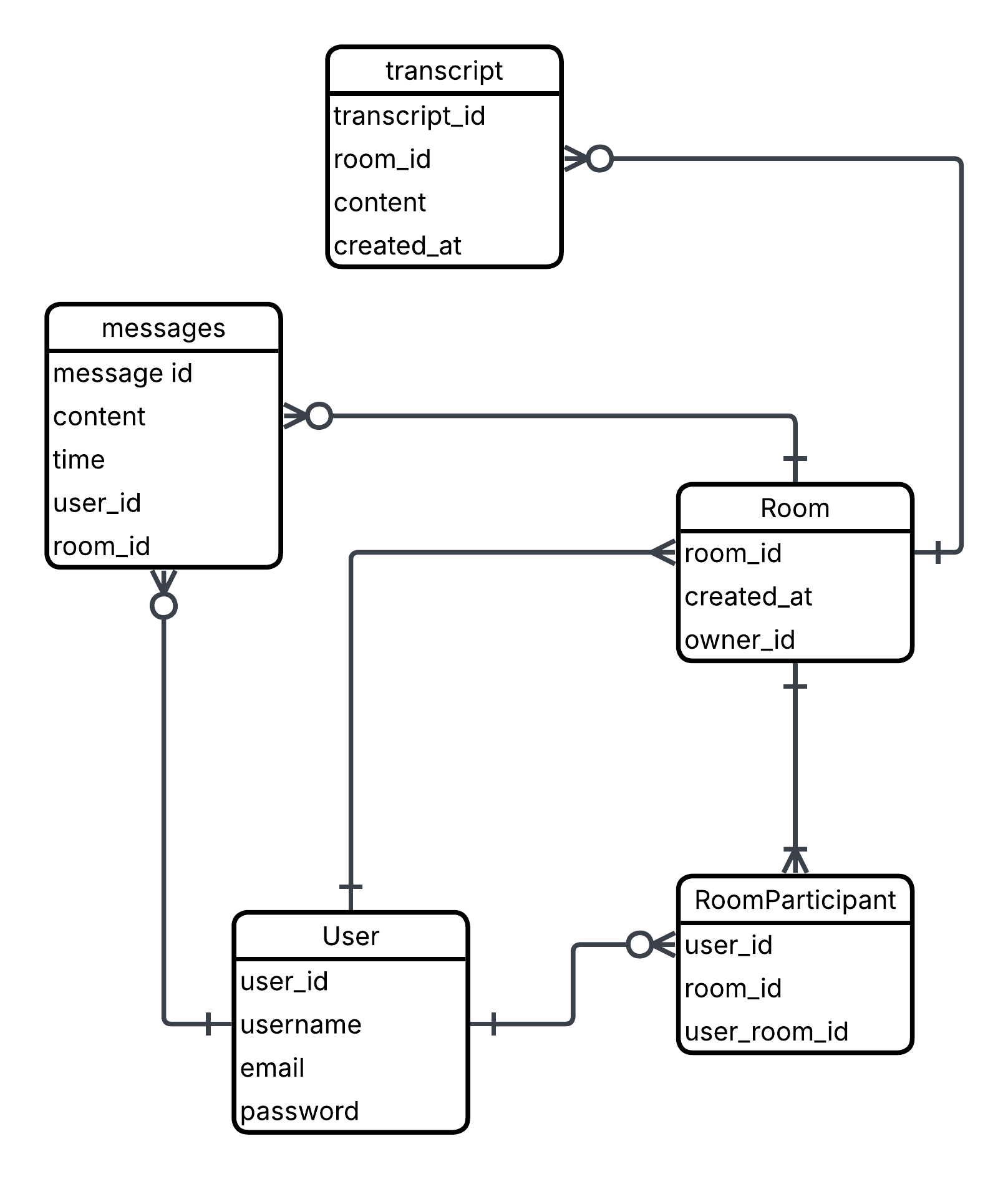

The diagram models a real-time chat application with five core entities: User, Room, RoomParticipant, messages, and transcript.

User: Stores registered user accounts with fields: user_id (PK), username, email, and password.
Room: Represents a chat room, identified by room_id (PK), along with created_at and owner_id (FK links to User). Each room is owned by exactly one user, but a user can own many rooms.
RoomParticipant: A junction table linking users to rooms. Fields: user_room_id (PK), user_id (FK links to User), and room_id (FK links to Room). A room can have many participants, and a user can join many rooms (many-to-many relationship resolved through this table).
messages: Holds individual chat messages with fields: message_id (PK), content, time, user_id (FK links to User), and room_id (FK links to Room). Each message belongs to one user and one room; a room and user can each have many messages.
transcript: Stores a compiled or saved transcript for a room, with fields: transcript_id (PK), room_id (FK links to Room), content, and created_at. A room can have zero or many transcripts.

From	To	Relationship
User	Room	One user owns zero or many rooms
User	RoomParticipant	One user participates in zero or many rooms
Room	RoomParticipant	One room has one or many participants
User	messages	One user sends zero or many messages
Room	messages	One room contains zero or many messages
Room	transcript	One room has zero or many transcripts
